Chain Conveyor

Chain conveyor, by definition, uses chains as traction and carriers to transport materials. The chains can be ordinary sleeve roller conveyor chains or other special chains. But when describing chain conveyors, it may also refer to conveyors that use chain plates as transmission media, such as table top conveyors, flexible chain conveyors, accumulation conveyors…….

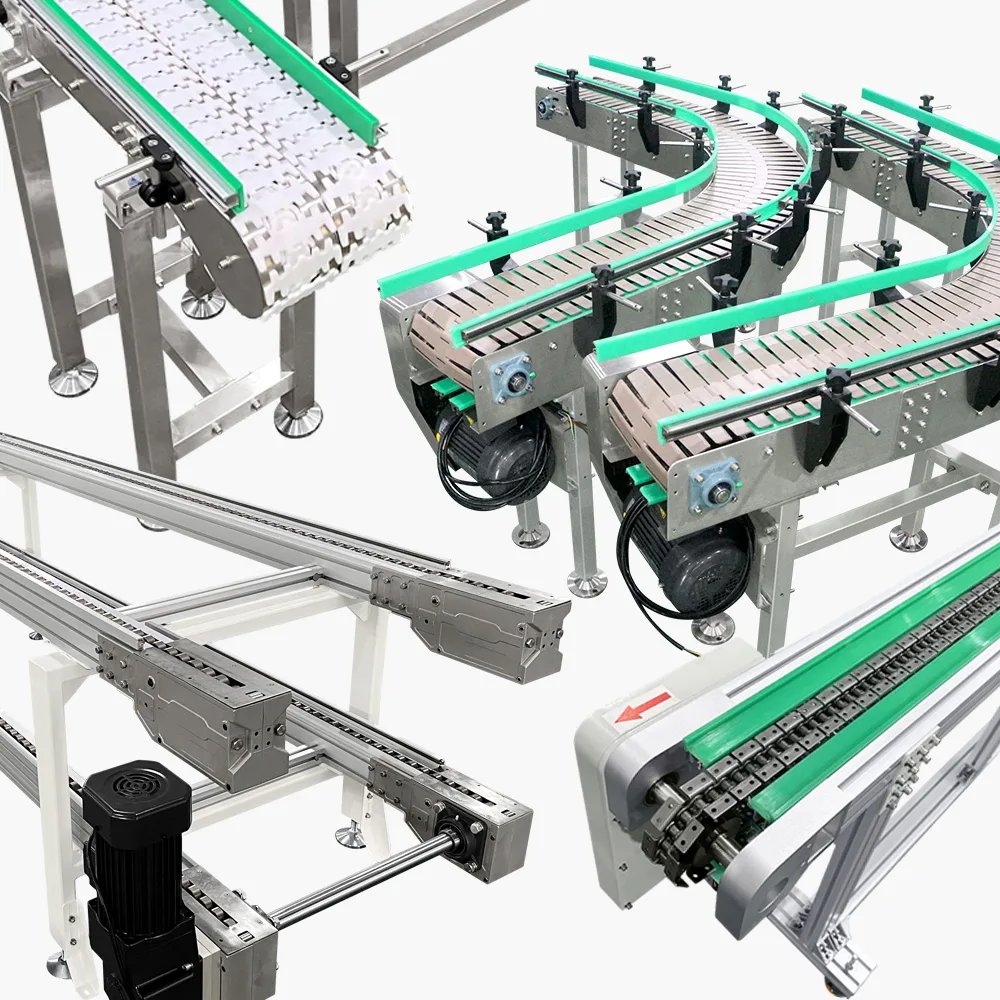

chain conveyors

Chain conveyors

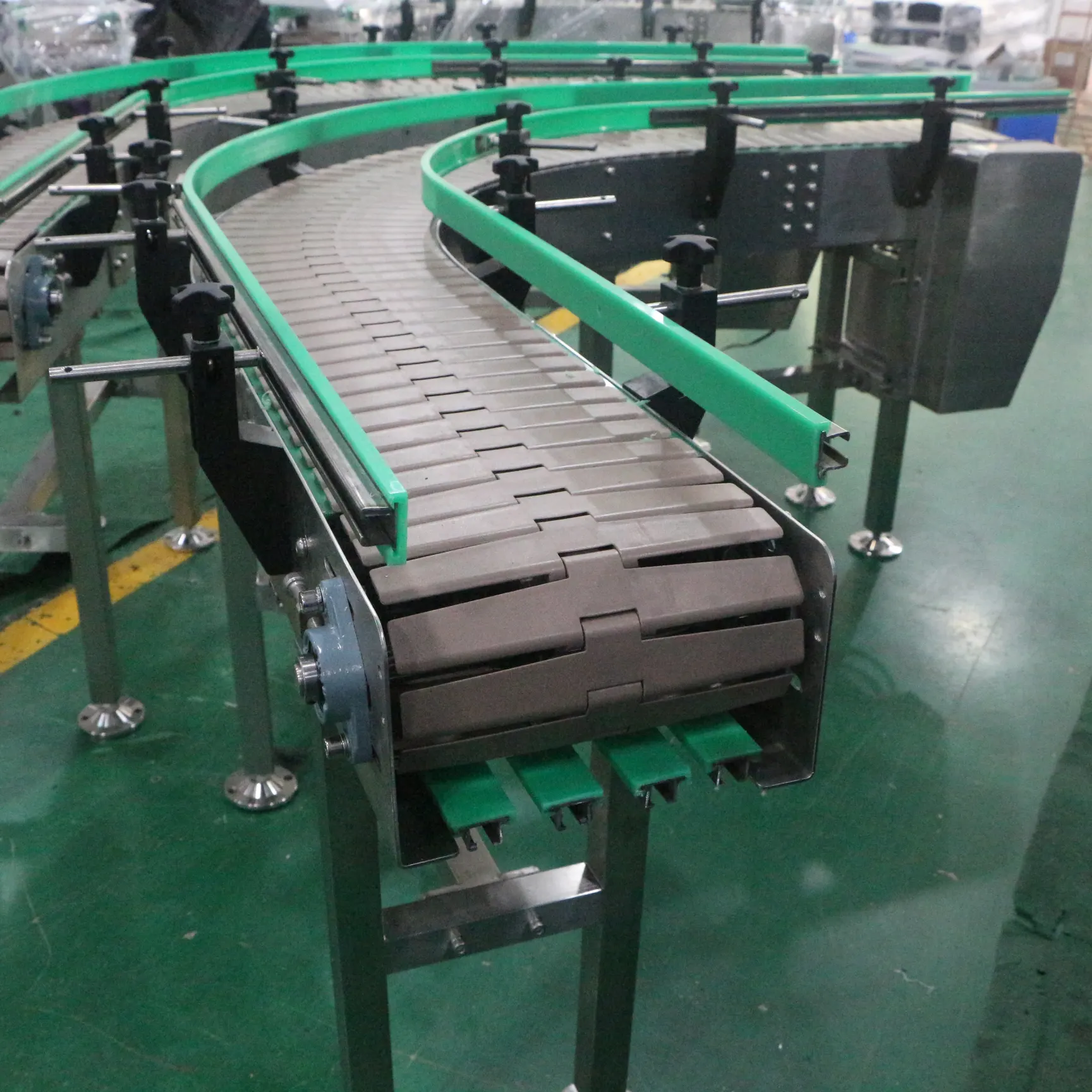

table top conveyor

Table Top Conveyor

flexible chain conveyor

Flexible Chain Conveyor

accumulation chain conveyor

Accumulation Chain conveyor

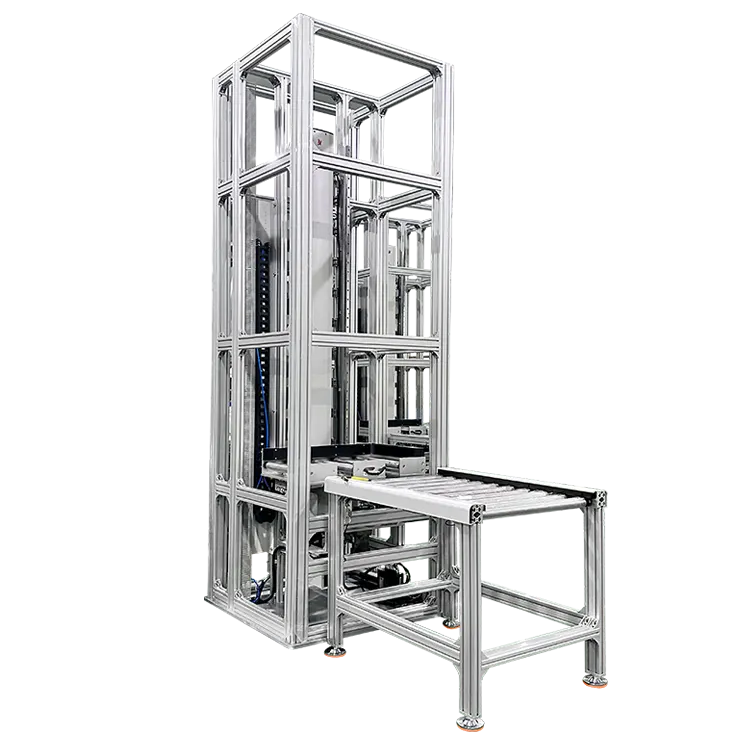

vertical conveyor

Vertical Conveyor

Advantages Of Chain Conveyor

Load Capacity

  • Compared with roller conveyors, chain conveyors have a greater load capacity and can carry 2-4 tons of goods, which is why most pallets filled with packaged goods use chain conveyors as the medium.

Durability

  • Compared with belt conveyors, chain conveyors use roller chains or top chains as the conveying medium and can be used in harsh environments, such as high humidity, high or low temperatures, corrosive chemical environments, etc.

Versatility

  • Chain conveyors and flexible chain conveyors can be lifted vertically or extended horizontally, effectively utilizing production space and improving the company's investment-production ratio.

Wide Application Fields

  • Chain conveyors with plastic conveyor chains as the conveying medium are usually used by food processing plants and pharmaceutical factories to convey bottles or cans, so they are also called bottle chain conveyors. One of the reasons is that in addition to saving space, they can also be easily washed and replaced.plast

CHINA CONVEYOR FOR SALE

As a chain conveyor supplier, we provide matching conveyor systems or single-unit chain conveyors for your setup. From screws to motor brands to frame colors, everything can be customized as your or your clients need. The following are the types of chain conveyors that Bifa designs, manufactures and sells to customers. If you have any special projects for chain conveyors, please feel free to tell our engineers.

Bifa team are happy to accept the challenge! Let’s figure it out together!

Ref. Picture Conveyors Types Max L Max W Max Speed Turn R Max load Notable Feature
chain conveyor 20m(65.6‘) 2000mm(78.7”) 20m(65.6′)/min / 200kg(440lbs)/m² WORKPIECE ADDABLE
table top conveyor 6m(19.6′) 304.8mm(12‘’) 12m(39.3′)/min min.610mm(24”) 200kg(440lbs)/m² HEAVY LOAD
flexible chain conveyor 15m(49.2′) 295mm(11.6‘’) 40m(131.2′)/min 150-500mm(5.9-19.6”) 10kg(22lbs)/m² SAVE SPACING

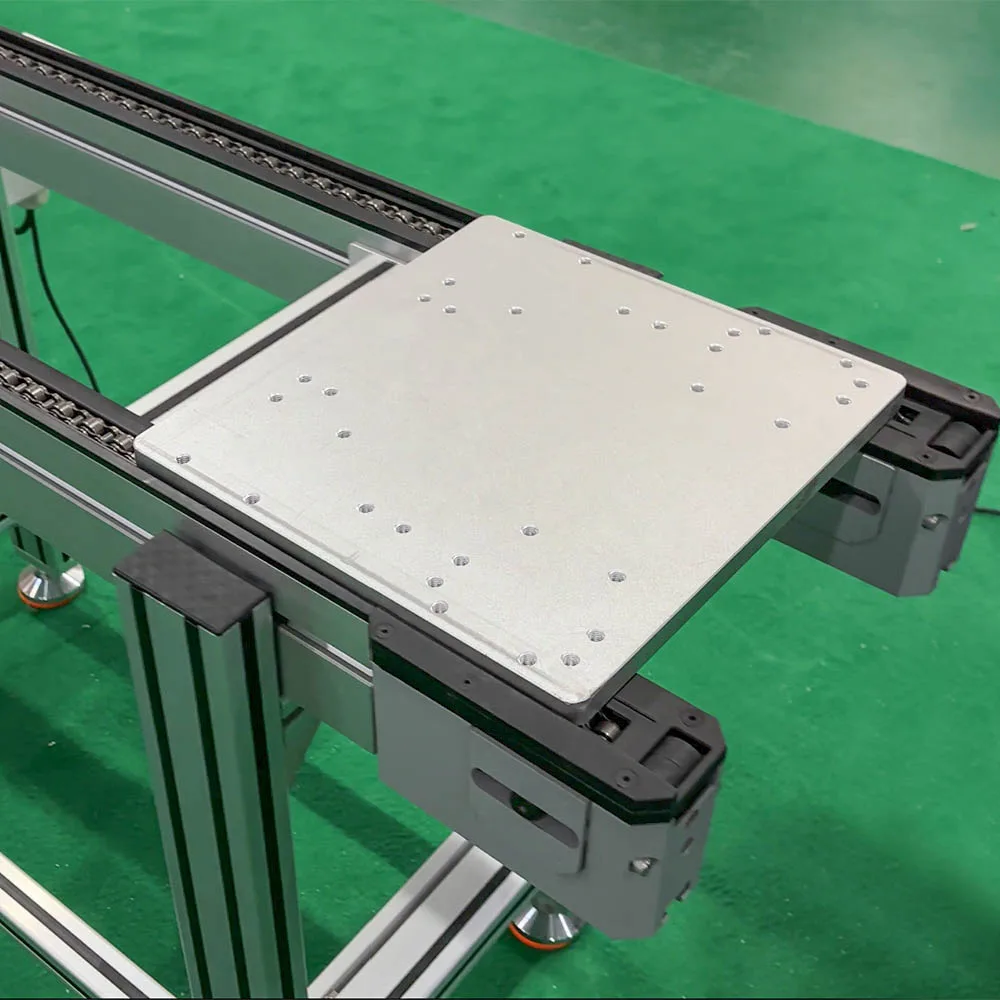

accumulation chain conveyor 12m(39.3′) 1500mm(59‘’) 50m(164′)/min / 200kg(440lbs)/m² ACCUMULABLE

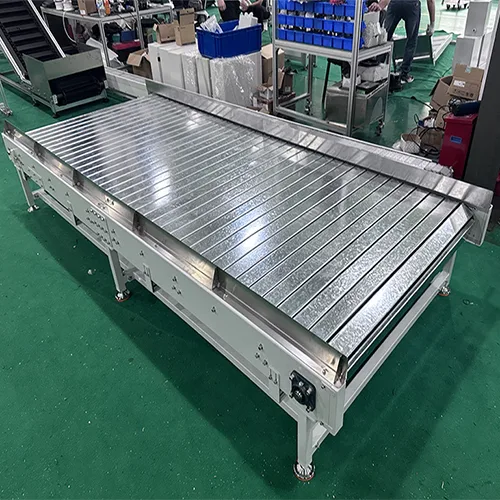

slat conveyor 10m(32.8‘) 1000mm(39.3‘’) 20m(65.6′)/min / 20kg(44lbs)/m² STABLE

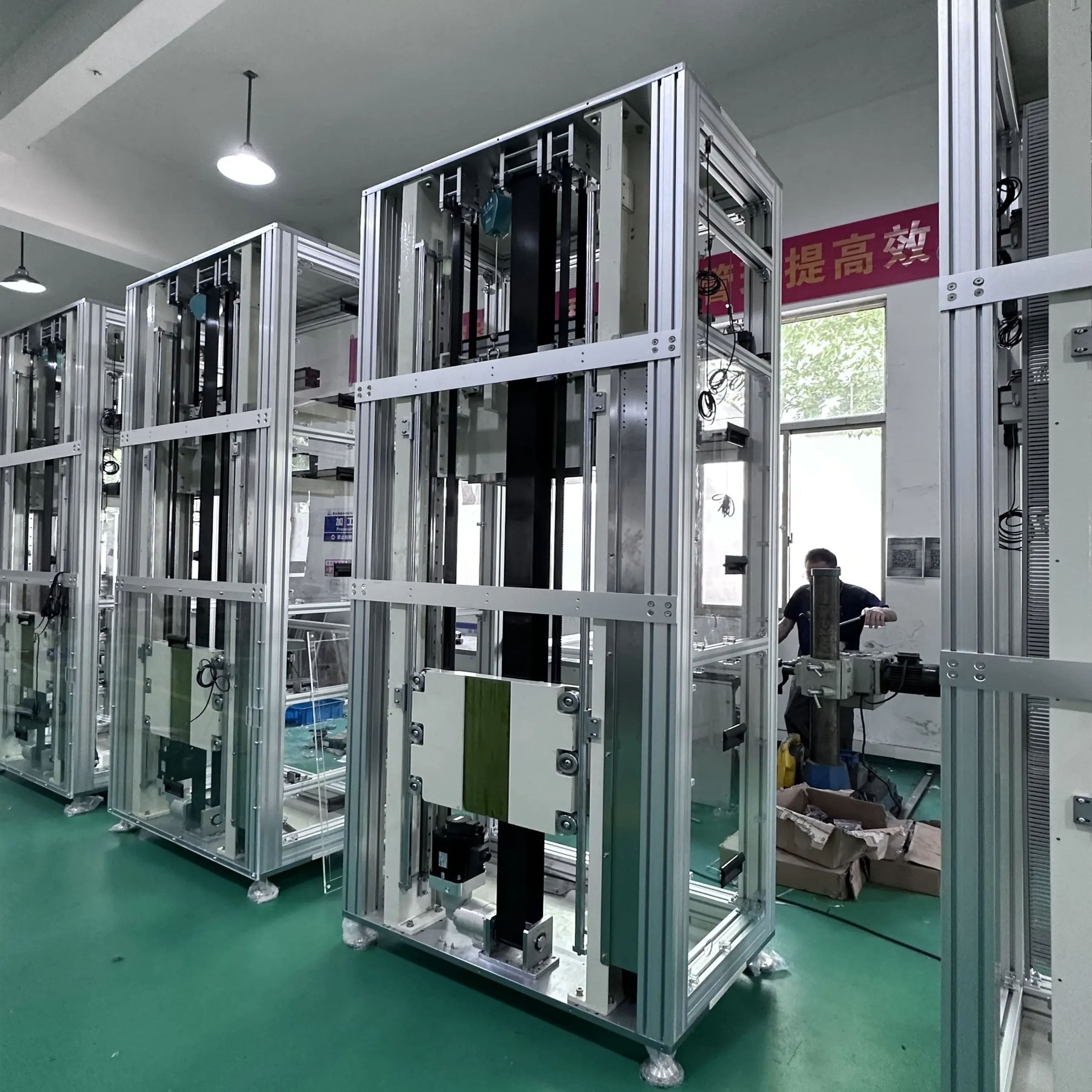

vertical conveyor (H) 15m(49.2′) 1000mm(39.3”) 30m(98.4′)/min / 600kg(1322lbs)/m² Able to span floors

Sidewalls/casters/attachments/chain material/frame material/motor brand can all be customized

GET A QUOTE

Bifa Chain Conveyor Case Highlights

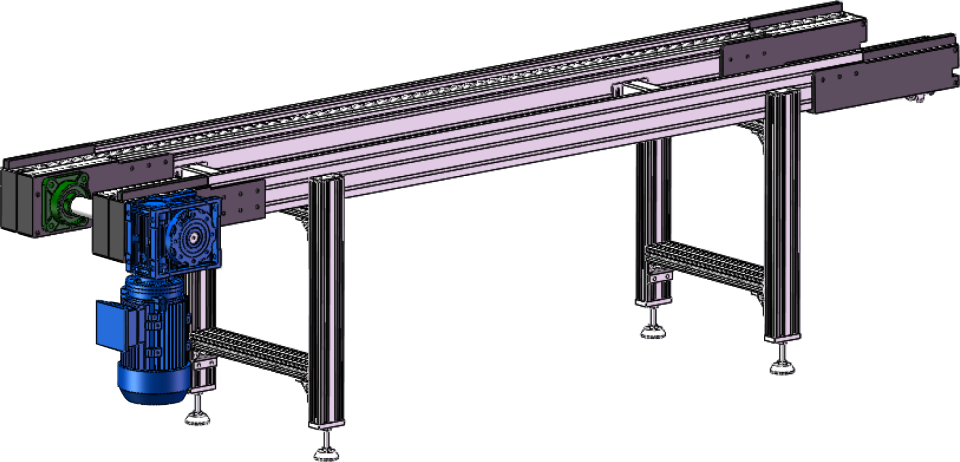

heavy duty conveyor systems

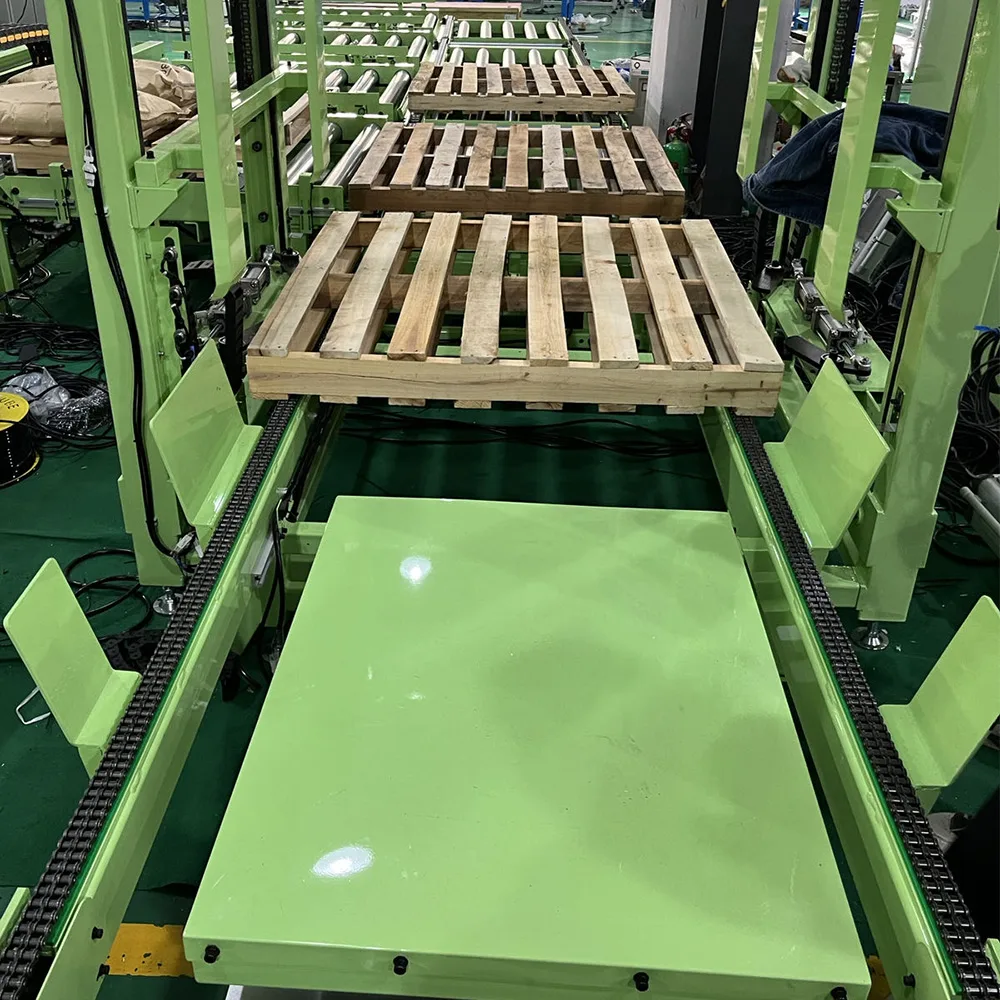

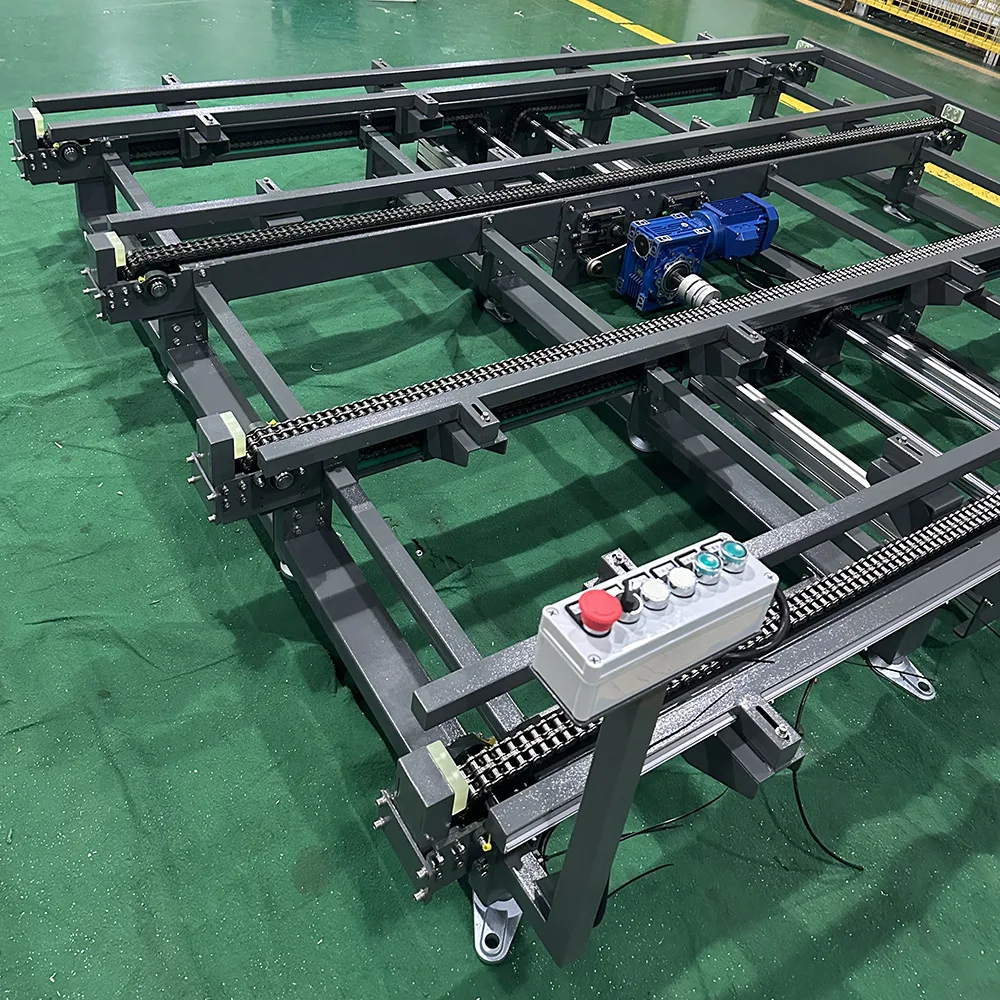

4-line heavy duty conveyor systems

The 4 line chain conveyor is a Conveying equipment composed of four parallel chains. It can realize the stable transmission of heavy-load, long-distance or large-sized materials through the synchronous drive of multiple chains. Its core advantages are high load-bearing capacity, strong stability and adaptability to complex working conditions. It is especially suitable for heavy manufacturing, automobile assembly, metallurgy and other industries.

Accessory Adaptation:
tooling plates
fixtures
baffles

View More

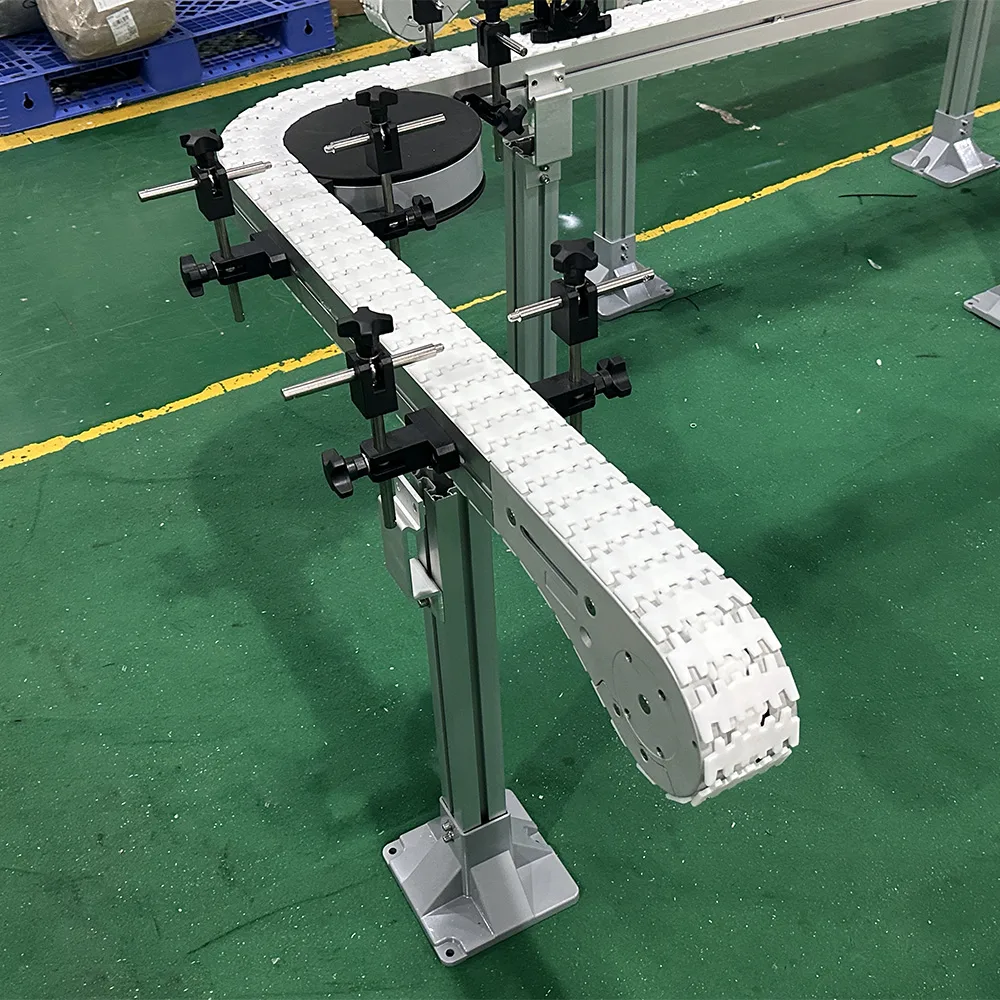

plastic conveyor chain

plastic conveyor chain

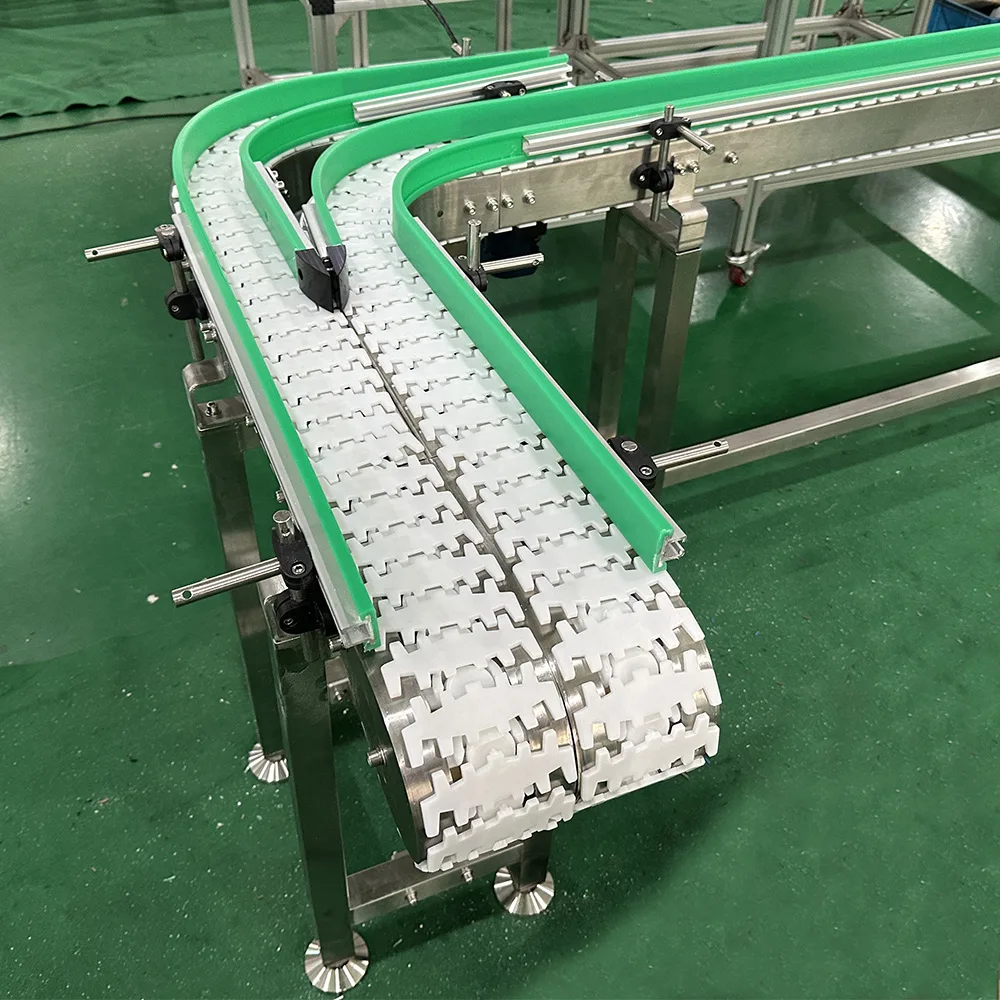

Flexible chain conveyor is a conveying equipment that uses specially designed plastic flexible chain as the transmission medium. Its core characteristics lie in its flexible adaptation to complex paths, modular design and multi-scenario applicability. It is especially suitable for industries that require bending, climbing, merging and dividing or clean environments.

Layout:
horizontal
vertical
tilt
spiral

View More

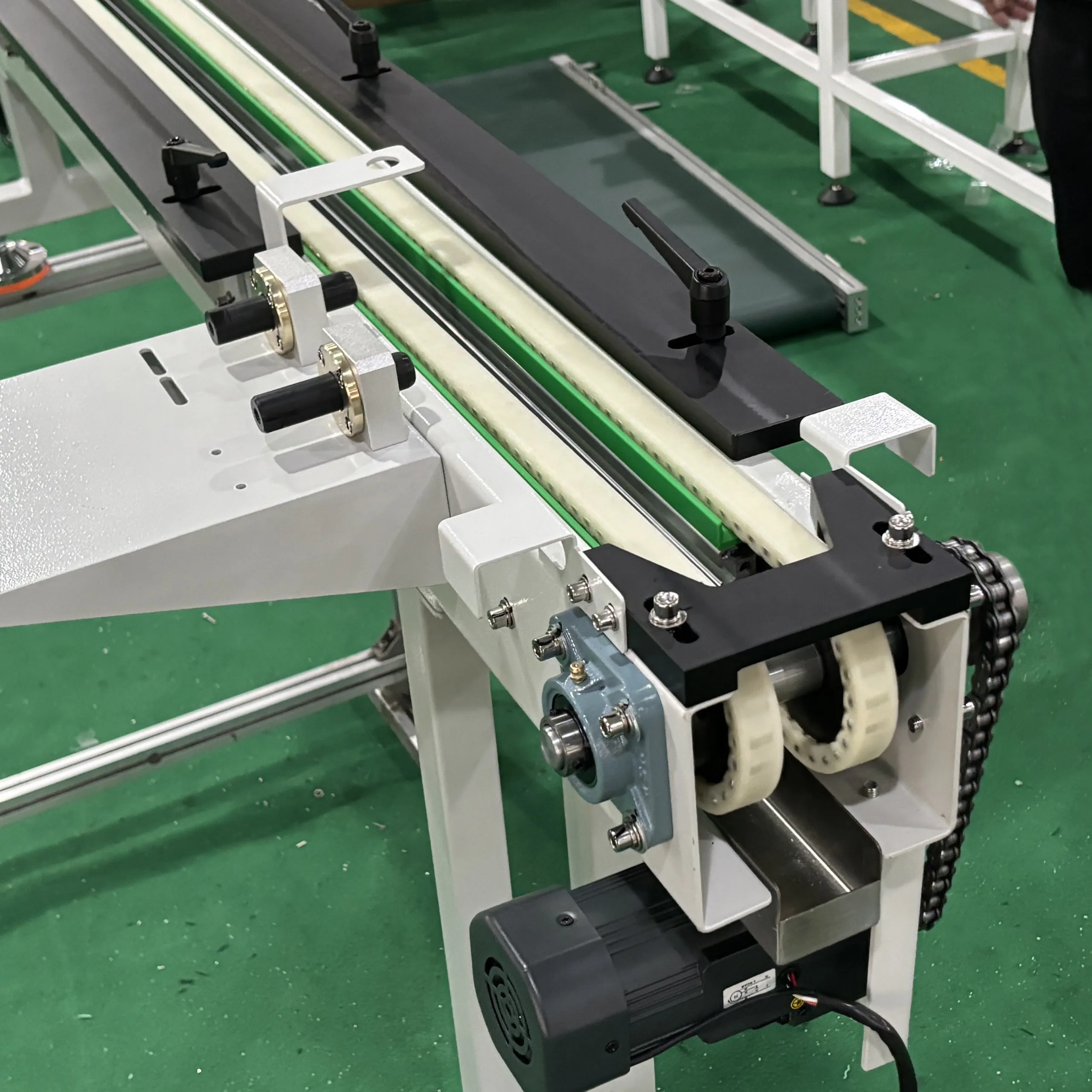

padded chain conveyor

padded chain conveyor

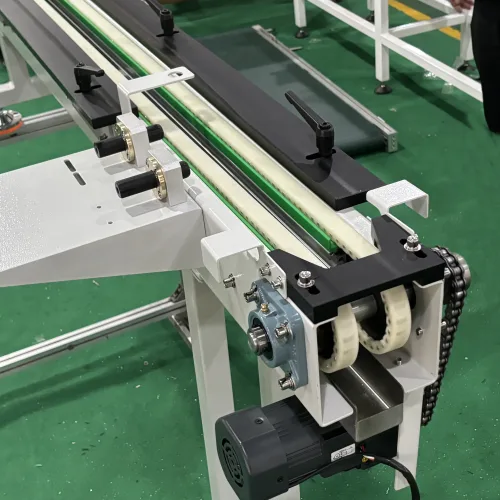

Padded chain conveyor refers to adding cover plates to the chain of the chain conveyor, which can prevent dust and prevent dust, debris, liquid, etc. from entering the meshing area between the chain and the sprocket, reducing wear. Prevent foreign objects (such as tools, rags) from accidentally falling into the gap of the chain and causing jamming or chain breakage. Maintain cleanliness and hygiene, and reduce noise and vibration.

Cover material options:
rubber
plastic
metal

View More
diverting conveyor​

diverting conveyor​

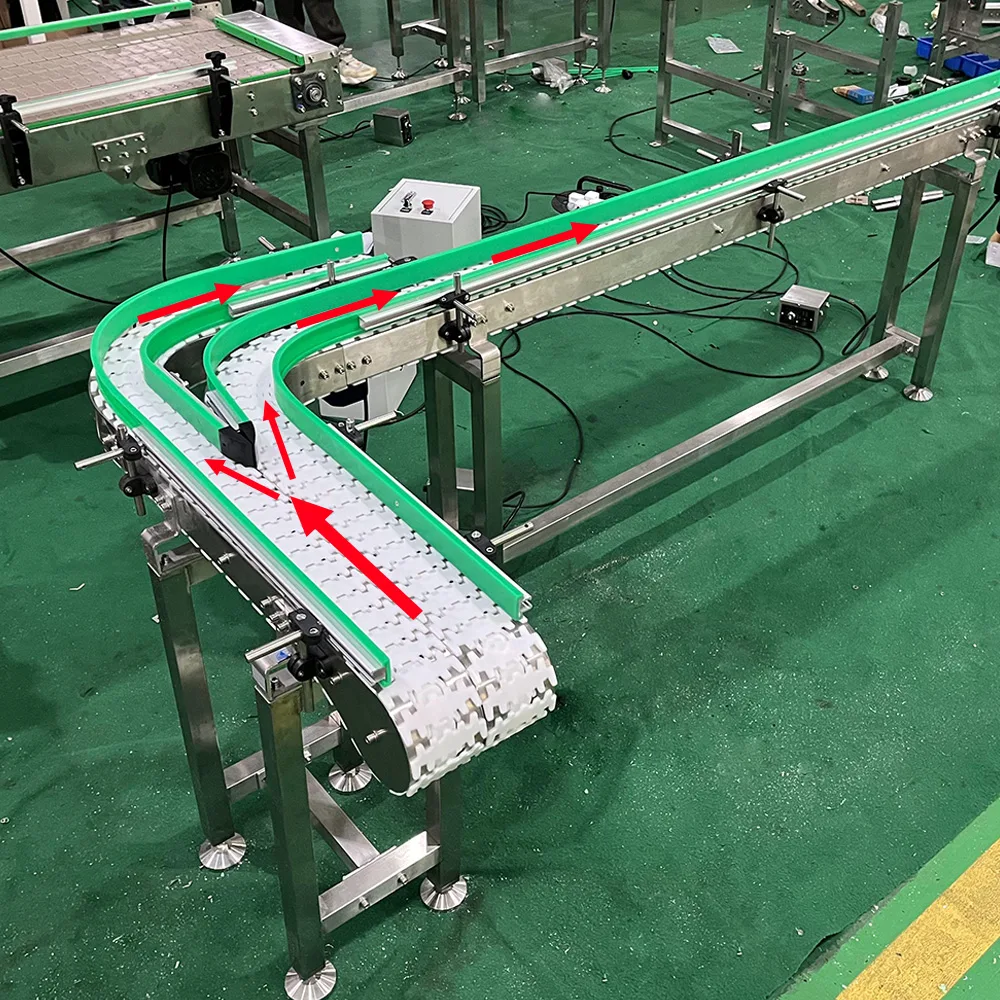

Diverting conveyor is a conveyor that can divert materials or products from the main conveyor line to different directions to achieve classification, sorting or directional transportation. It works together through sensors, control systems and mechanical devices, and is widely used in logistics, manufacturing, warehousing and other fields. It is often used in logistics sorting, automated production lines and warehousing and distribution.

Method Selection
push rod sorter: Push items to the side track through the lateral push rod, suitable for medium speed and regular shape items.
pop-up wheel sorter: The roller rises from the bottom of the main conveyor line, rotates and guides the items to turn, suitable for parcels, cartons, etc.
omni conveyor: uses omnidirectional wheels to transport and divert materials. It can move in multiple directions, such as forward, backward, left and right, and rotate, and has extremely high flexibility.

View More

Conveyor Chain Manufacturers

Bifa as a conveyor chain manufacturers can provide many types of conveyor chain Including but not limited to several: chain conveyor, table top conveyor, flexible chain conveyor, accumulation chain conveyor, vertical conveyor…..

At the same time, we also provide chain conveyor parts including but not limited to the following: conveyor chain and sprocket, table top chain, conveyor roller chain,chain conveyor tensioner…..

Highly Customizable

Bifa's chain conveyor systems provide highly customizable and includes:
Chain belt conveyor frame material/color
Chain specifications/types/brands/materials
Motor brand/power

After-sales support

Bifa Conveyor provides 7/24-hour service and can provide online real-time services to users around the world. Since we are located in China and enjoy China's perfect supply chain, when you need to purchase replacement parts, we can send the parts to you in a timely manner to reduce downtime.

chain conveyor system
reasonable design

Bifa's TableTop conveyor system offers a versatile design, which makes it a popular conveyor system suited for a wide range of high-speed production environments. The flat top plates are stronger than modular belting and transport items through production more efficiently and safely. Chain conveyors have excellent flexibility for production line layouts, being suitable for curves or changes in elevation, thus streamlining factory operations.

High adaptability

With rich industry experience and a professional design team, from solution communication-simulation operation-to 3D drawing confirmation-more than 8 hours of in-plant operation testing, the conveying part can be perfectly integrated into your existing equipment.

How to choose the right conveyor chain types?

Faced with so many conveyors of different styles and functions, how should we quickly choose the right chain conveyor type for our own factory or for our clients?

Clear Requirements

First, clarify the specific requirements of your factory when using chain conveyors, including

>> Material type: What is the material to be conveyed? What is its shape, size, and weight?

Table top conveyors and flexible chain conveyor are more suitable for conveying goods with flat bottoms, such as small boxes, beverage bottles, cans, and packaged foods (biscuits, chocolates).

When it comes to heavy or irregular products, such as fully loaded pallets, product parts, etc., consider using a chain conveyor (workpieces can be made as a carrier for the parts according to needs)

When it comes to production lines where many processes require precise processing and assembly of parts, consider using accumulation chain conveyor, which can achieve precise positioning of a single module.

>> Conveying speed: How fast does it need to be conveyed?

The flexible chain conveyor has a fast conveying speed and can meet the production requirements of most FMCG factories. If a single conveyor cannot meet the production requirements, consider using double-layer or multiple conveyors.

>> Working environment: Is the working environment of the factory hot, cold, humid, or corrosive?

The above chain conveyors can be used in harsh production environments. If they need to contact food, all bifa conveyors can provide you with aluminum alloy/carbon steel/stainless steel frames.

Consider the structure of the conveyor

The structure of the chain conveyor needs to be selected according to the layout and needs of the factory:

Horizontal conveying: chain conveyor/table top conveyor/

flexible chain conveyor/accumulation chain conveyor

Curved conveyor: table top conveyor/flexible chain conveyor

Vertical conveying: vertical conveyor

Evaluate the Drive Unit

The choice of drive device has a great influence on the performance of the conveyor:

Motor power: select a motor with appropriate power according to the weight of the conveyed material and the conveying distance.

Reducer type: select a suitable reducer to ensure the smooth operation of the conveyor.

Consider Maintenance and Care

Choosing a chain conveyor that is easy to maintain and service can reduce downtime and maintenance costs:

Easy to replace parts: Ensure that key parts are easy to replace and maintain.

Automatic lubrication system: It can reduce manual maintenance and increase the life of the conveyor.

Budget

Finally, choose the most cost-effective belt chain conveyor based on your budget:

Cost-benefit analysis: Consider not only the initial purchase cost, but also the long-term operation and maintenance costs.

Supplier and brand

Choosing a reputable and experienced supplier and brand can ensure the quality and after-sales service of the conveyor:

Reputation and evaluation: Understand the evaluation of other users on the supplier and brand.

After-sales service: Ensure that the supplier provides good after-sales service, including warranty, repair and technical support.

FAQ FOR CHINA CONVEYORS

Chain conveyors also called chain plate conveyor can be used in military material production lines, logistics storage and transportation equipment, chemical industry conveyors, environmental protection industry conveyors, purification industry conveyors, wood industry conveyors, furniture industry production lines, tobacco production lines, etc. Chain conveyors are widely used in automated and semi-automated production lines such as food, packaging, automobiles, home appliances, and electronics to achieve continuous or intermittent transportation of materials or workpieces.

View case

  • steel chain conveyor
  • table top conveyor
  • mat top conveyor
  • flexible chain conveyor
  • accumulation chain conveyor
  • lift conveyor
  • slat conveyor
  • double-wing chain conveyor
  • Belt conveyors are best for lightweight, delicate, and smaller items, offering smooth and quiet operation but with limitations on load capacity.
  • Chain conveyors are ideal for heavy, bulky, and industrial items, providing robust and durable transport but potentially requiring more maintenance and being noisier.
  •

Customize conveyor solution

In simple terms,

Automotive conveyor chain includes: frame/chain or sprocket/mesh belt/rod chain/power part

Generally speaking, chain conveyors are only composed of chains, frames, and power parts, and can be used horizontally or vertically.

Slat conveyors/plate link conveyors refer to the same type of conveyors: chain/threaded rods/mesh belts or slats/frames/power parts, and can only be used horizontally or at a certain angle.

view case

As a chain conveyor manufacturer, we have conducted a detailed investigation of chain and chain plate suppliers or brands. The world-famous chain or chain plate suppliers are mainly the following:

Chain Brands
Renold (UK)
Renold is a long-established chain manufacturer, known for its high-quality transmission chains and engineered chains.

Tsubaki (Japan)
Tsubaki is one of the world’s leading chain manufacturers, with products including transmission chains, conveyor chains, specialty chains, etc., which are widely used in various industrial fields.

Rexnord (USA)
Rexnord provides high-performance transmission chains and conveyor chains, which are widely used in conveying systems and heavy industrial equipment.

Diamond Chain (USA)
Diamond Chain is known for its high-quality roller chains, and its products are widely used in various mechanical equipment and industrial transmission systems.

Donghua (China)
Donghua Chain is a leading chain manufacturer in China with a wide range of products, which are widely used in agricultural machinery, industrial transmission and conveyor systems.

FlexLink (Sweden)
FlexLink is a well-known supplier of chain conveyor systems, providing modular conveying solutions, which are widely used in manufacturing and assembly lines.

Habasit (Switzerland)
Habasit provides various types of chain plates and conveyor belts, with excellent product quality, which are widely used in food processing, packaging and logistics.

Intralox (USA)

Intralox is a leading manufacturer of modular plastic chains for food processing, beverage production and other industrial conveying systems.

Forbo (Switzerland)
Forbo offers a wide range of chain and conveyor belting products for a wide range of industrial applications including logistics, manufacturing and food processing.

System Plast (Italy)

System Plast offers a wide range of conveyor chains and components known for their high durability and reliability for a wide range of industrial applications.

We can specify the chain brand for our chain conveyor.
