| Technical Parameters | ||
| Conveyor length L (L1+L2+L3) | L1 up to 4000mm(13.1′), L2 min. = 600mm(1.9′), L3 min.=400mm(1.3′) | |
| Incline degree(a) | up to 70° | |
| Conveyor width | 300(11.8”) to 700mm(27.5”) | |
| Speed | up to 30m(98.4′)/min | |
| Standard total load | up to 20kg(44lbs)/m² | |
| Drive location | discharge end left/right, underneath/above | |
1. The slope part uses a whole piece of galvanized bear loading pallet which provides strong support when conveying heavy objects, thereby increasing the service life of cleated incline conveyor, reducing the downtime of the assembly line, and increasing the input-output ratio of the project.
galvanized bear loading pallet
2. The height and spacing of the inclined cleated belt conveyor can be customized according to the goods size. Cleated with a height of more than 100mm are not recommended, which means that the incline conveyor belt is not suitable for goods with a single product radius of more than 100mm. The reason is that when the cleated passes through the driving roller and the driven roller a certain number of times, the probability of the cleated falling off at the connection with the belt is relatively high.
conveyor belt cleats
3. Bifa belt conveyor side skirting (sidewall conveyor belt) or metal sidewalks to the belt according to needs handle steeper incline, so that it can meet the needs of conveying bulk materials, such as particles/powders/nuts, etc…..
conveyor belt skirting
4. As a factory wholesale industrial incline conveyor, we can provide you with highly customized services, including but not limited to the following:
-Customized incline conveyor with hopper
-Customized support leg height
-Multiple frame materials, most customers choose baking paint carbon steel, stainless steel, aluminum alloy.

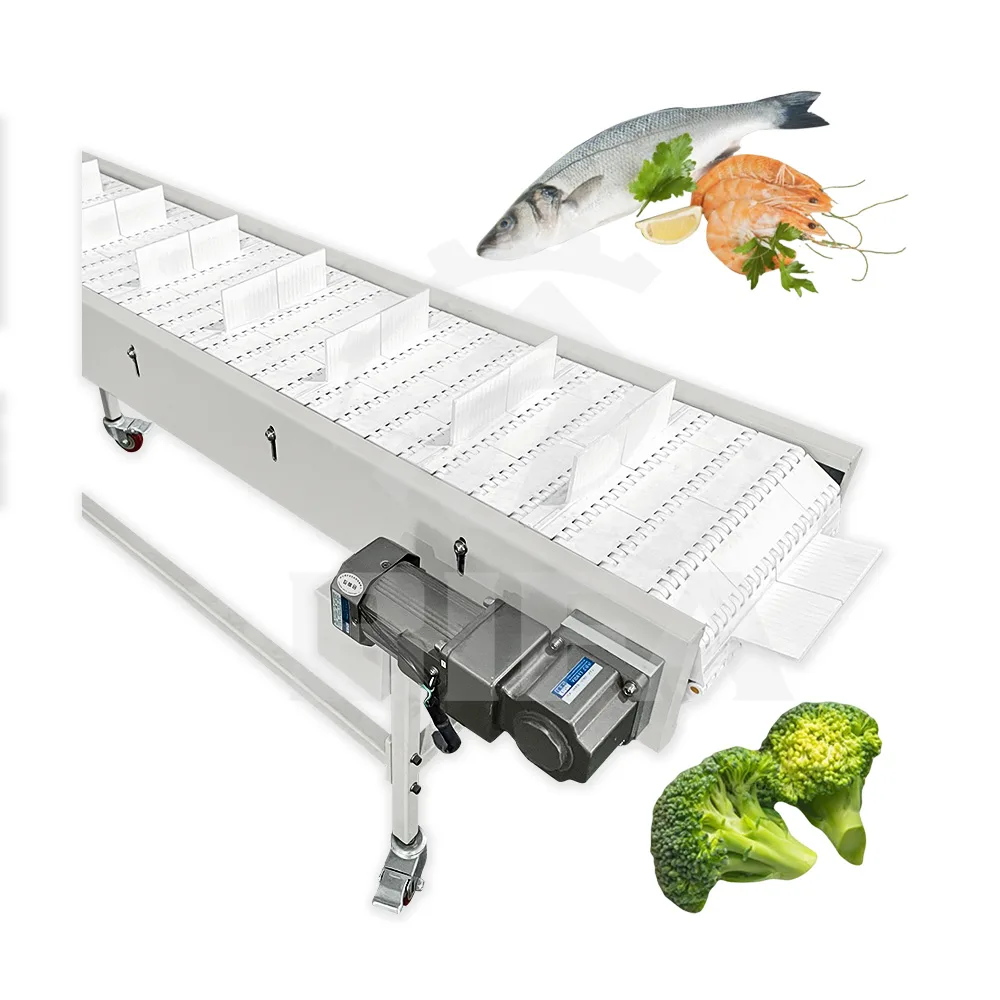

-Multiple materials are available for the conveying part, not just belts, but can be made into modular conveyors.
z incline conveyor acrylic cover
6. According to the needs of the discharge port docking, different styles of sliding guide plates (discharging hopper)can be customized to guide the material to the next process effectively.
Slide guide plate
Inclined conveyor is also known as z conveyor,which is used to convey a large amount of granular or fragmented materials at different heights. It conveys materials from low to high or from high to low through the movement of the belt. Its conveying part can be replaced by many materials, mainly including: incline conveyor belt, inclined modular conveyor, chip conveyor, etc.It is usually available in three styles: Z/C/R type
Efficient conveying:
It can realize vertical or slope conveying of materials in a limited space, greatly improving conveying efficiency.
Multi-angle adjustment:
The conveying angle can be adjusted according to actual needs to adapt to different working environments and conveying requirements.
Multiple material options:
The conveyor belt can use different materials, such as rubber, PVC, PU, etc., to adapt to different material types and working environments (such as anti-slip, anti-corrosion, wear-resistant, etc.).
Automation integration:
It can be easily integrated into automated production lines and conveying systems, and work with other equipment to improve overall production efficiency.
Space saving:
Due to the ability to convey materials in a vertical or sloped direction, climbing belt conveyors can save horizontal space and are particularly suitable for places with limited space.
Improve production efficiency:
It reduces the time and manpower required to transport materials between different heights, and improves the overall efficiency of the production line.
Reduce labor costs:
Automated material transportation reduces the need for manual handling, thereby reducing labor costs and the complexity of human resource management.
Improve working environment:
Through mechanized transportation, the frequency of workers carrying heavy objects is reduced, and safety risks in the working environment are reduced.
Wide application:
Applicable to various industries, such as food processing, chemical industry, logistics, mining, building materials, etc., both light and heavy materials can be efficiently transported.
Flexible configuration:
The conveying length, width and height can be flexibly configured according to production needs to meet different process requirements.
Durability and reliability:
Adopting high-quality materials and advanced manufacturing technology, climbing belt conveyors usually have a long service life and reliability, and low maintenance costs.
