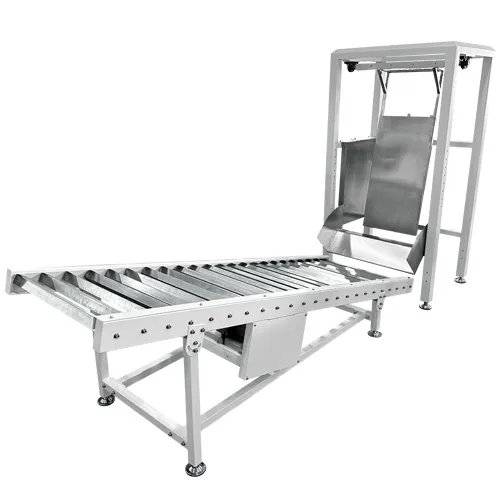

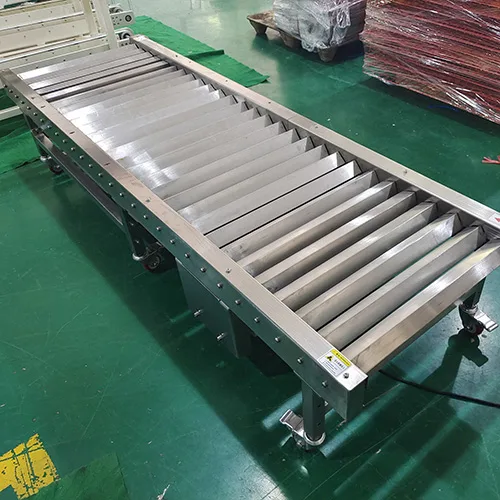

Bag pusher with settling leveling conveyor is mainly used to level products in bags or boxes so that they can enter the next production process, such as packing, palletizing, etc. The square roller’s high-speed operation is mainly responsible for its vibrating and leveling function.
Length: up to 10m(32.8‘)
Width: up to1000mm(39.3‘’)
Speed: up to 15m(49.2′)/min
| Technical Parameters | |
| SQUARE ROLLER CONVEYORS | |
| Conveyor material | Galvanized / Stainless Steel |
| Conveyor length | up to 4m(13.1′) |
| Conveyor width | up to 1500mm(59”) |
| Speed | up tp 20m(65.6′)/min |
| Distributed load | 100kg(220bs)/m² |
| BAG PUSHER DEVICE | |
| Height | up to 4m(13.1′) |
| Width | according to the width of your bag |
| Power | Pneumatic/Electric |
The structure of the this conveyor system is similar to that of the chain conveyors, but the advantages of the slat conveyor are also obvious.
As a slat conveyor suppliers and manufacturer , Bifa can not only provide you with simple iron slats, but also design different fixture (attachment) to add to the slats according to different products, which can achieve the following purposes:
*Achieve precise positioning
*Prevent material from sliding
*Ensure consistency and repeatability
*Product separation
*Cooperation with robotic arms or other equipment
*Reduce product damage
*Prevent product deformation
Moreover, the fixture (attachment) on the Bifa slat chain conveyor design can usually be quickly replaced to meet different production needs.
This can improve the flexibility of the equipment and reduce the adjustment time when changing products on the production line.
If you have this requirement, please inform us in advance so that the engineer can select the appropriate power configuration for you.
stainless steel slat conveyor chain
Advantages
a. The equipment has a simple structure and is easy to maintain.
b. It can transport materials at large horizontal and inclined angles.
c. It has a large conveying capacity and a long conveying distance, and is suitable for large-scale material transportation.
d. The gusset conveyor can be arbitrarily combined in the process production process to form different systems, making the production process more continuous and improving production efficiency.
Disadvantages
a. The sealing of the gusset conveyor is poor, and it is easy to leak.
b. The drag chain and the load-bearing plate are easy to wear during use and need to be replaced regularly.
c. The longitudinal strength is insufficient and cannot withstand slopes greater than 8 degrees.
Exact conveyors replication
Improve conveyors performance
Increase production line output
